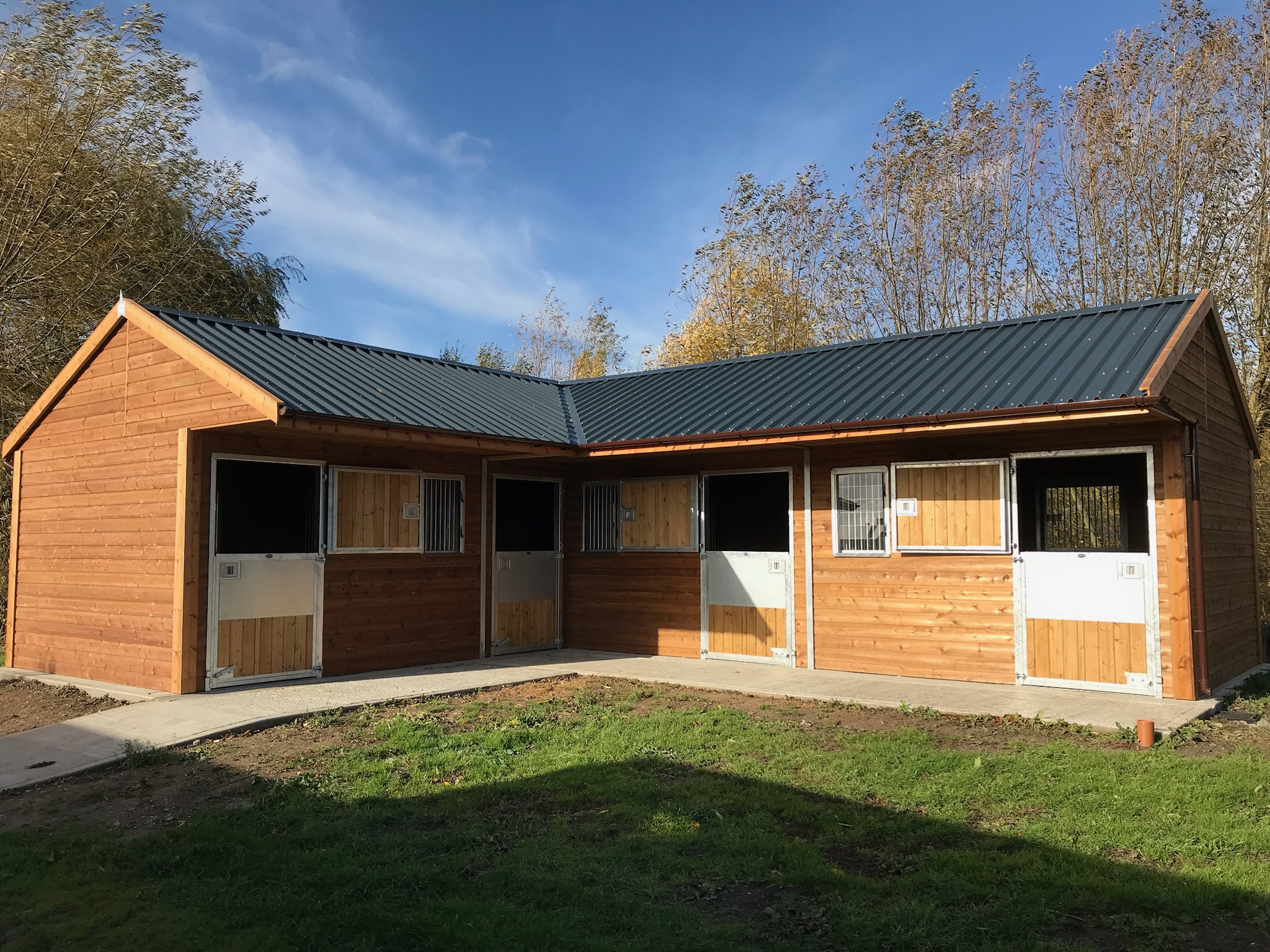

Hancox Loose Boxes

When we developed our loose boxes, we focused on creating a product that combines strength, durability, and high-quality design. Constructed with robust materials, these loose boxes feature our signature stable doors with hinged windows at the back and a fixed 6-blade louvered window at the front for superior ventilation. Fully equipped with excellent airflow, including ventilation through the ridge, windows, and doors, they ensure a constant supply of fresh air. The carefully designed roof pitch allows stale air to escape, maintaining a healthy environment for your horse. Unique to Hancox, a galvanised steel plinth replaces the traditional single row of bricks, which can become dislodged and eventually break up. This innovation allows us to have more control over the build, offering reassurance that your loose box will remain secure and long-lasting. Safe, secure, and built to last, Hancox Loose Boxes provide the ideal space for your horse, backed by the peace of mind that comes with our quality craftsmanship.

Framework

70mm x 45mm pressure treated redwood C14 structural grade softwood. Planed all round and rounded on all four corners with verticals at 600mm centres, with 70mm x 70mm timber posts used on corners and between panels to add extra strength the building. Horizontal noggins are standard @ 1220mm high in order to provide extra fixing points when fitting kicking boards. All kicking boards are screwed in place and not nailed for ease of removal of any damage sheets.

External Cladding

Redwood grade, pressure treated softwood in a brown finish. Machined to a half lap profile 125mm deep x 15mm thick finished size. All Nails used in fastening cladding Types to framework are stainless-Steel

Purlins

125 mm x 45mm Pressure treated redwood C14 structural grade softwood. Planed all round and rounded on all four corners.

Overhang and Soffit

All units to include a 1.2 metre overhang as standard

Soffit; clad in half lap boarding onto a timber frame with 6 vents built in per stable for the Movement of fresh Air

Wall Lining

18mm thick Exterior grade hardwood faced plywood fully lined up to Eaves level

Screwed- not nailed to vertical framework

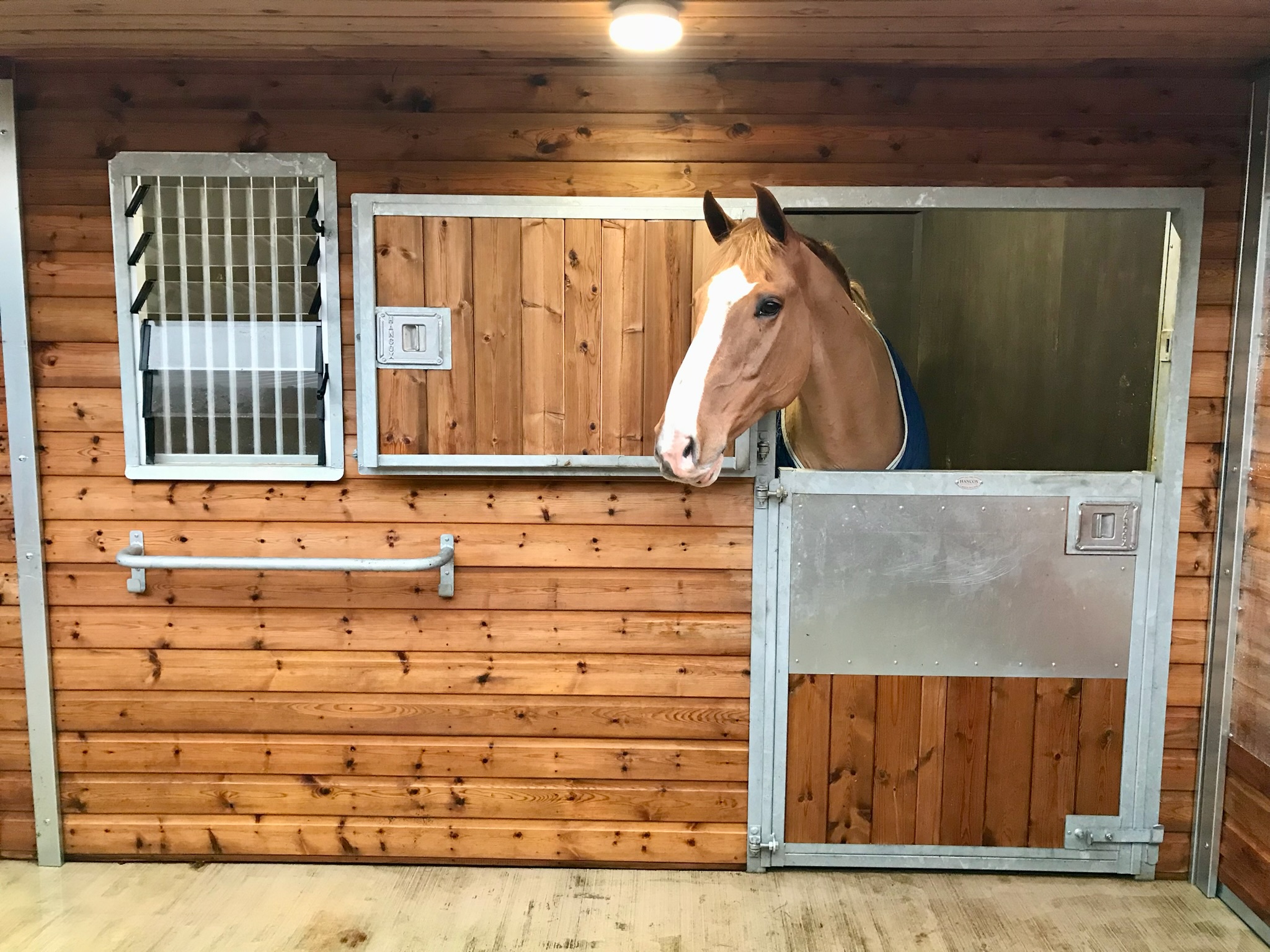

Stable Doors

Hancox Deluxe Steel Framed Heavy – Duty Steel frame bottom doors clad in 33mm thick West African hardwood machined to a tongue and groove profile.

Fitted with Our unique Flush fitting self-locking handles, Hung off a 90mm x60mm Steel angled frame complete with galvanised flashing to inside of frame to cover up exposed timber edge.

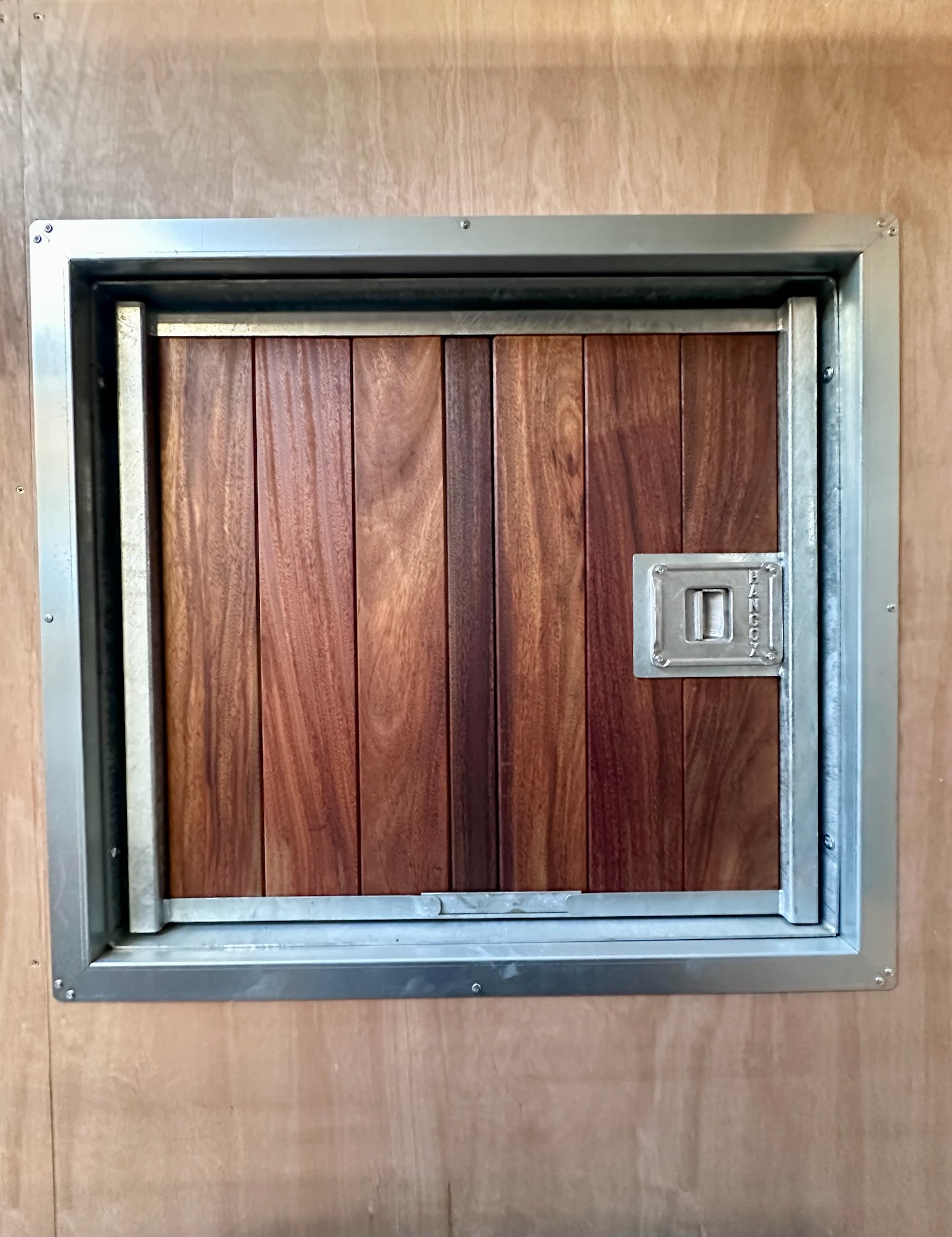

Windows

Steel framed hinged windows clad in Acrylic and barred on the inside hung off an angled frame complete with tie-backs and includes galvanised flashings on the inside of window frame

Louvered windows

Steel framed 6 blade louvered windows with acrylic blades with an internal grill

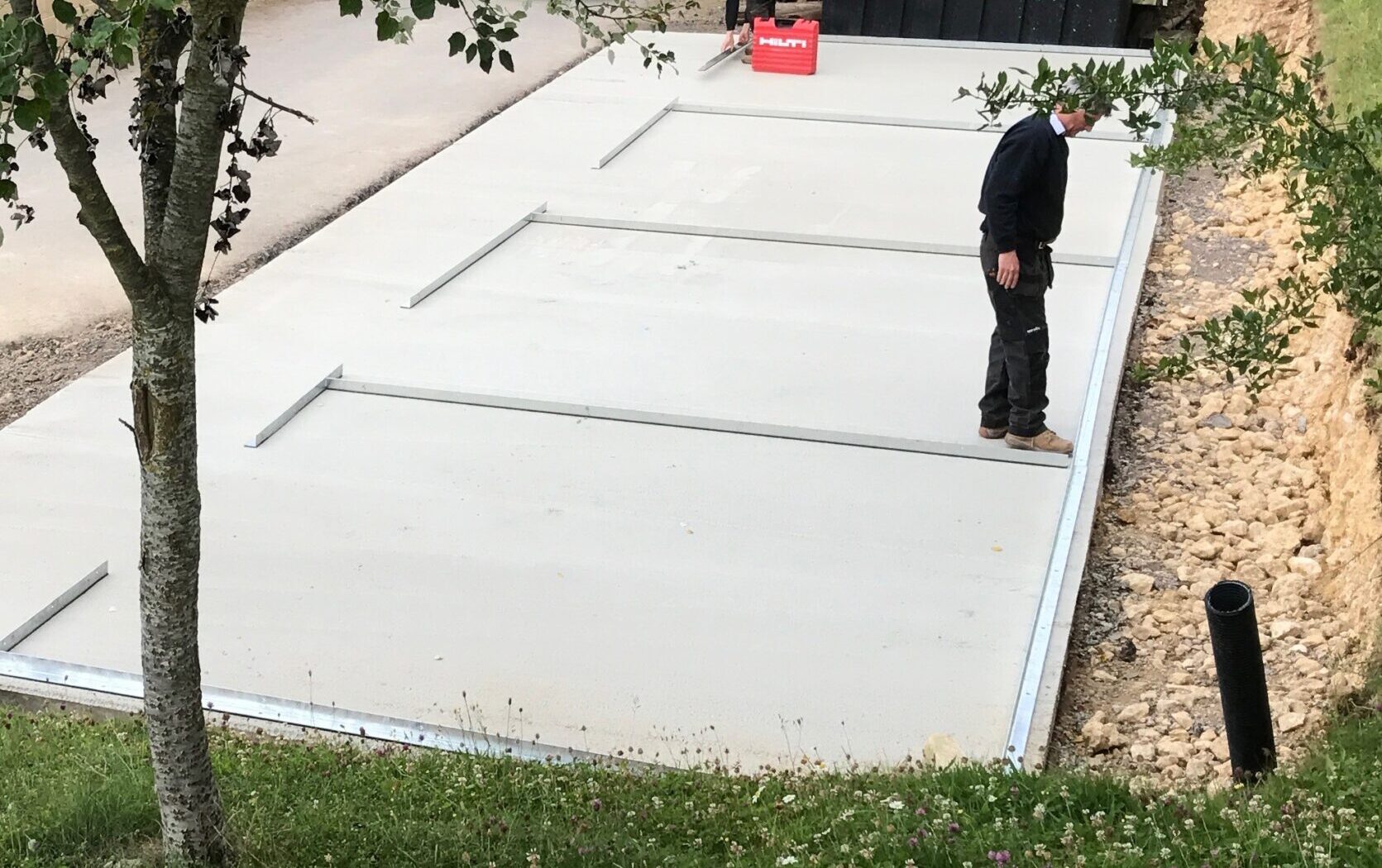

Steel Plinth

60mmx 60mm Galvanised steel angled plinth with a waterproof membrane adhered to the underside to provide a weathertight seal between concrete floor- so No need for any brick courses that only ever break-up or become dislodged and get damaged during installation.

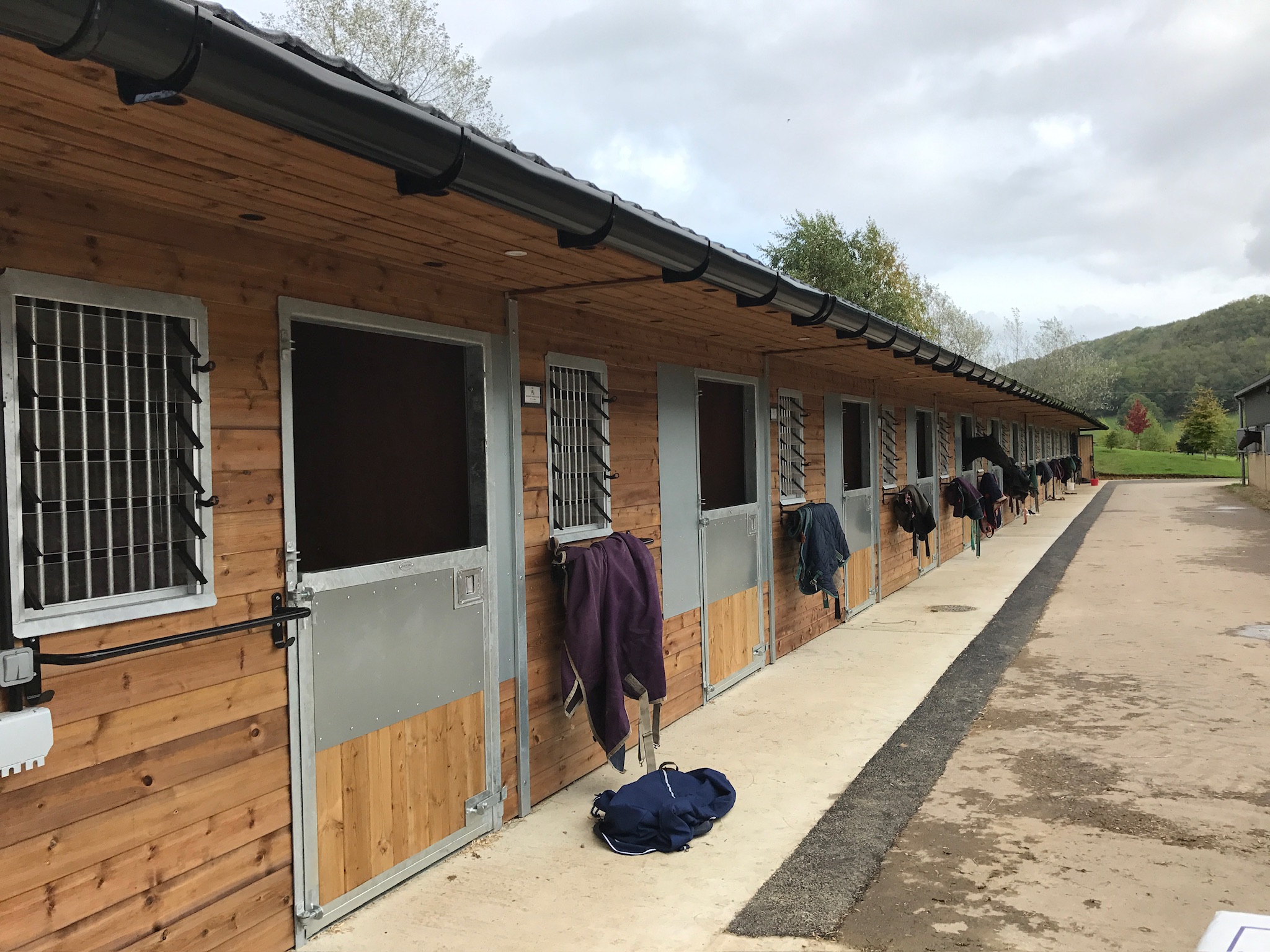

Guttering

100mm half round plastic guttering in black across the front and back of building with 2 (No) downpipes per Each Run

Roof

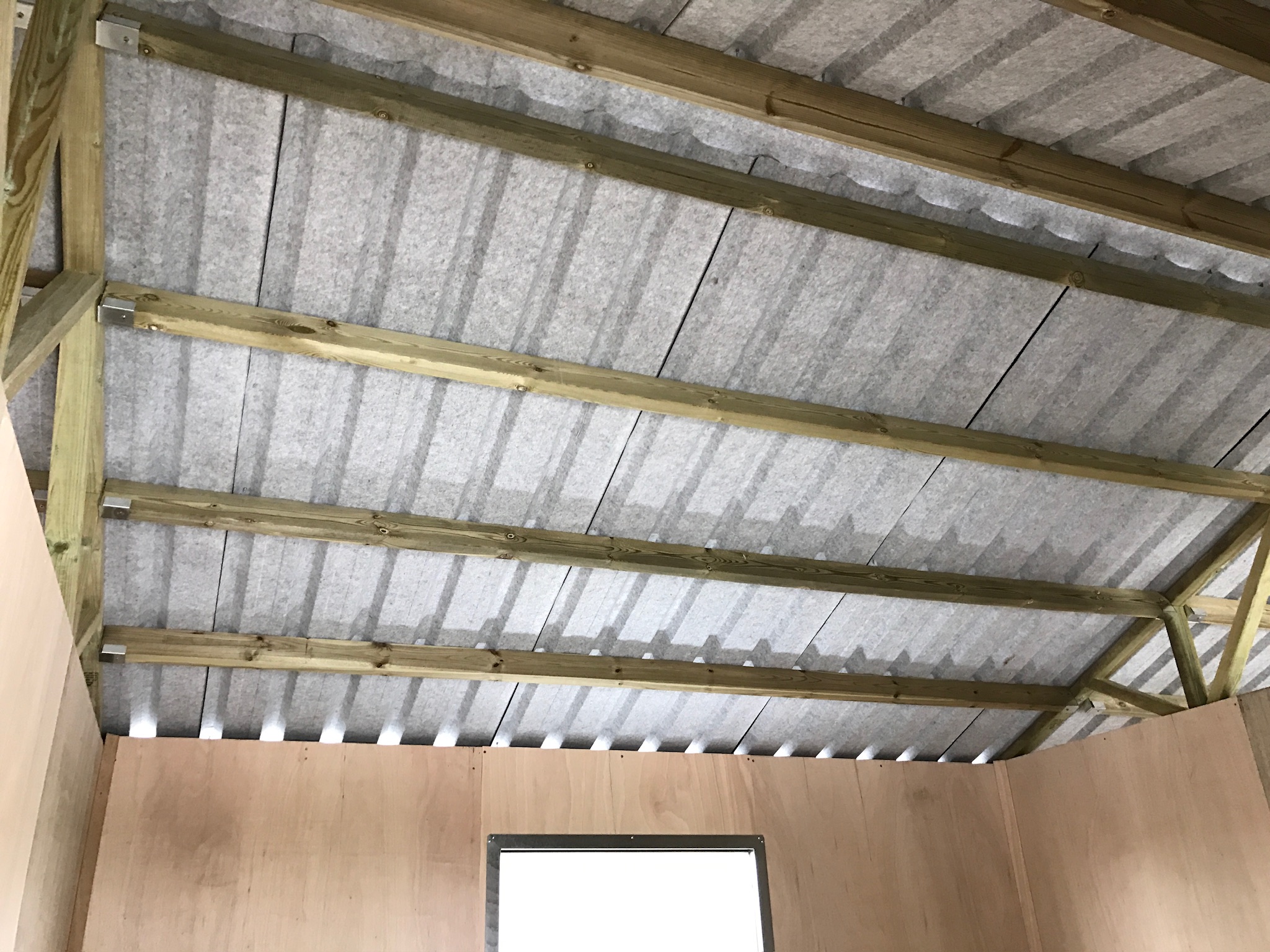

• Plastic coated Box profile steel sheeting with an anti-condensation fleece lining to the underside
• In a choice of standard colours
• Black
• Vandyke Brown
• Anthracite Grey
• Juniper Green
